RAYMARINE EVOLUTION 400 AUTOPILOT

3,465.80 3,050.00

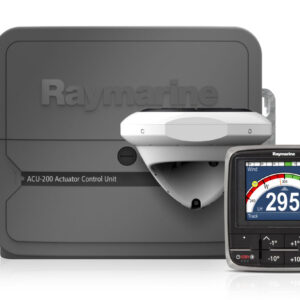

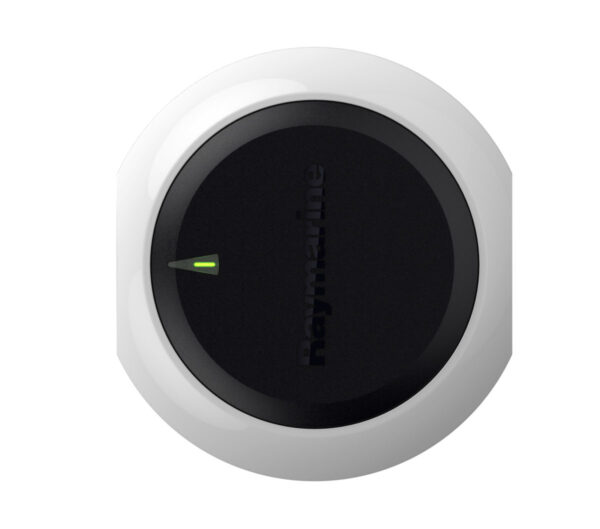

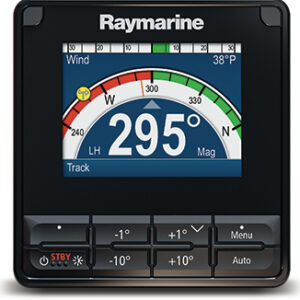

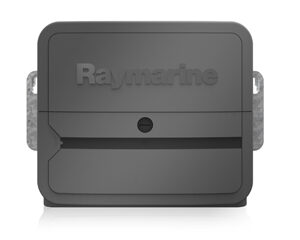

ΠΕΡΙΛΑΜΒΑΝΕΙ : Raymarine ACU 400 course computer, P70s οθόνη/κοντρόλ αυτόματου πιλότου, γωνιοδείκτη, αισθητήριο EV-1, καλώδια stng, εγχειρίδιο χρήσης/εγκατάστασης.

Κωδικός προϊόντος: T70161 Κατηγορίες: ,

Περιγραφή

Ο νέος αυτόματος πιλότος Evolution ιδανικός για ψάρεμα, ιστιοπλοϊα και για αγώνες.

ACU-100 ACU-150 ACU-200 ACU-300 ACU-400
Nominal power supply 12 V 12 V or 24 V
Operating voltage range 10.8 V to 15.6 V dc 10.8 V to 31.2 V dc
Drive current output Maximum continuous 7 A at supply voltage Maximum continuous 12 A at supply voltage Maximum continuous 15 A at supply voltage Maximum continuous 5 A at supply voltage Maximum continuous 30 A at supply voltage
Drive clutch output No clutch connection No clutch connection Up to 2.0 A continuous, selectable between 12/24 V No clutch connection Up to 4 A continuous at – 12 V on 12 V systems, 24 V on 24 V systems, 12 V on 24 V systems
Connections Rudder reference sensor, Power, Drive motor, Ground Rudder reference sensor, Power, Drive motor, Ground Rudder reference sensor, Sleep switch, Power, Drive motor, Drive clutch, Ground Rudder reference sensor, Sleep switch, Power, Solenoid drive out/ return, Ground Rudder reference sensor, Sleep switch, Power, Drive motor, Drive clutch, Ground, Digital Input/Output
Power consumption (standby) main power supply 300 mA (12 V) 300 mA (12/24 V)
Power consumption (standby) SeaTalkng power supply No power supply to SeaTalkng 20 mA (12 V)
SeaTalkng LEN (Load Equivalency Number) 1
SeaTalkng power out No power supply to SeaTalkng 3 A at 12 V (fuse protected at 3 A)
Data connections SeaTalkng
Installation environment Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF) | Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF) | Relative humidity: max 93%
Waterproof rating Connector panel – IPX2, Drive electronics – IPX6 Drip resistant
Weight 0.6 kg (1.32 lbs) 2.2kg (4.84 lbs)
Conformance Europe: 2004/108/EC | Australia and New Zealand: C-Tick, Compliance Level 2
